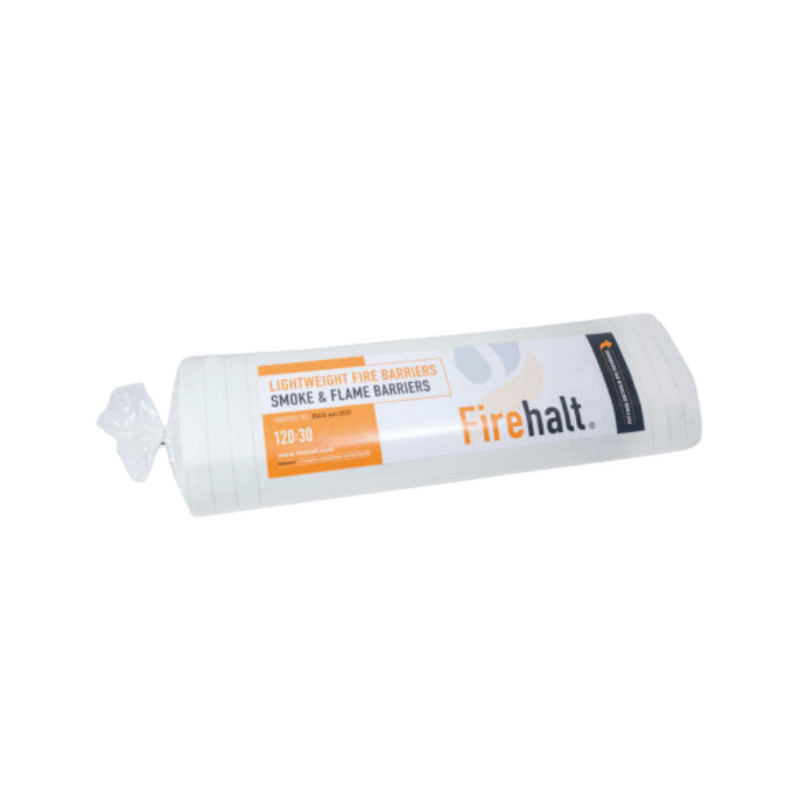

Firehalt 120:30

Firehalt DS 120:30 is a high-specification, multi-layer fire barrier engineered to provide 120 minutes integrity and 30 minutes insulation. Purpose-built for vertical use in concealed spaces and roof cavities, it is independently tested and certified to deliver robust passive fire protection in demanding environments.

Key Features & Benefits

• Certified Fire Performance

  • Warringtonfire tested to BS 476: Parts 20/22

  • Achieves 120 minutes integrity and 30 minutes insulation

  • BRE / LPCB certified cavity barrier – Certificate 1872a/01

• Versatile Applications

  • Effective as a cavity barrier or fire barrier to extend compartment wall fire ratings up to the roof line or upper slab

  • Verified for horizontal, movement joint, pipe, and timber protection (per FOA reports)

• Proven Fire Resistance Standards

  • Class O fire propagation (BS 476 Part 6: 1989)

  • Class 1 surface spread of flame (BS 476 Part 7: 1987)

  • Non-combustible to ISO 1182:1990 and IMO Resolution MSC.61(67)

• Durable, Flexible & Practical

  • Multi-layer construction that is easy to cut, handle, and install

  • Weavelock fire-resistant coating (food safe & non-corrosive)

  • Clean white finish for a professional installation

Technical Specifications

• Minimum Thickness: 7 mm

• Minimum Weight: 1900 g/m²

• Fibre Diameter: > 6 micron (non-respirable)

• Colour: White

• Application: Vertical use only

Packaging & Dimensions

• Roll Width: 130 cm

• Roll Length: 6 m (standard)

• Roll Area: 7.8 m²

• Packaging: Convoluted and individually wrapped in polythene

Why Choose Firehalt 120:30?

With its extended fire integrity rating, Firehalt 120:30 provides a higher level of passive fire protection compared to standard barriers. Independently tested, third-party certified, and simple to install, it is a trusted choice for cavity barriers and compartmentation in commercial and industrial buildings.

Please contact us on 01752 690997 or [email protected] for a quote or for any technical enquiries.
