Firehalt 90:60 – Certified Horizontal Fire Barrier

Firehalt 90:60 is a high-performance, multi-layer fire barrier engineered for horizontal applications requiring robust protection. Delivering 90 minutes integrity and 60 minutes insulation, this barrier combines advanced construction with independent third-party certification to ensure safety and compliance.

Key Features & Benefits

• Certified Fire Resistance

  • Independently tested by Warringtonfire to BS 476: Part 20/22: 1987

  • Achieves 90 minutes integrity and 60 minutes insulation

  • Certified by KIWA / IFCC – Ref 1337

• Optimised for Horizontal Use

  • Purpose-built for horizontal fire protection applications

  • Provides strong compartmentation and resistance in concealed spaces

• High-Performance Construction

  • Multi-layered system including treated glass fibre fabrics, high-temperature insulation mats, and reflective aluminium foils

  • Free from respirable fibres for safe handling and installation

  • Weavelock fire-resistant coating (food safe & non-corrosive)

• Durable & Practical

  • Flexible and easy to cut to size on-site

  • Clean white finish for a professional installation

  • Supplied in standard 6 m rolls for efficient coverage

Technical Specifications

• Minimum Thickness: 18 mm

• Minimum Weight: 4900 g/m²

• Fibre Diameter: > 6 micron (non-respirable)

• Colour: White

• Application: Horizontal use only

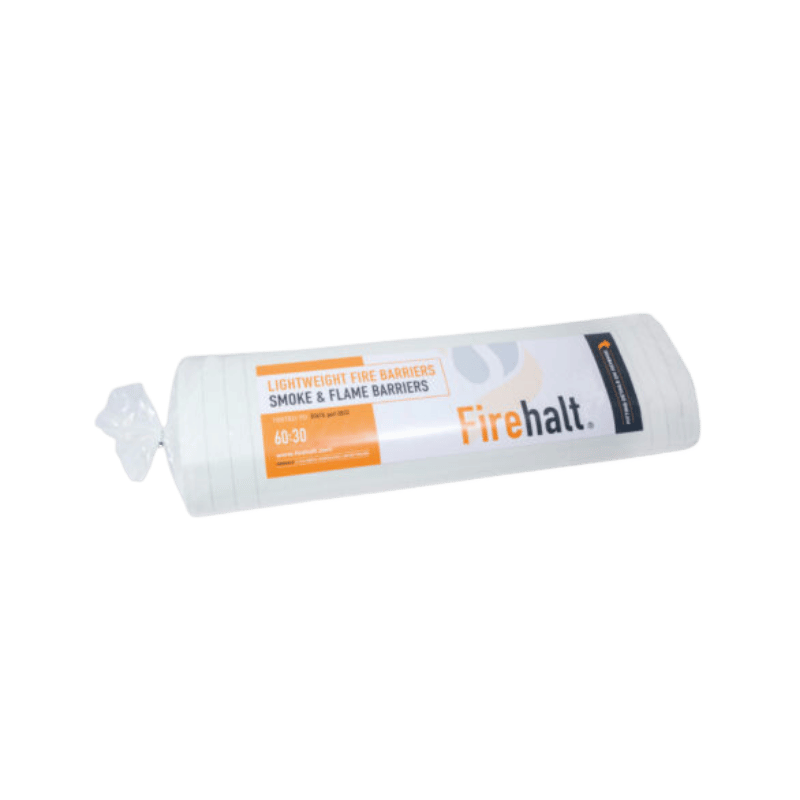

Packaging & Dimensions

• Roll Width: 130 cm

• Roll Length: 6 m (standard)

• Roll Area: 7.8 m²

• Pack Weight: 38 kg (two-person lift)

• Packaging: Convoluted and individually wrapped in polythene

Why Choose Firehalt  90:60?

With its advanced multi-layered construction and independent KIWA/IFCC certification, Firehalt DS 90:60 is the trusted solution for horizontal fire protection. Offering long-lasting performance with 90:60 protection, it ensures both compliance and peace of mind for critical fire safety installations.

Please contact us on 01752 690997 or [email protected] for a quote or for any technical enquiries.
